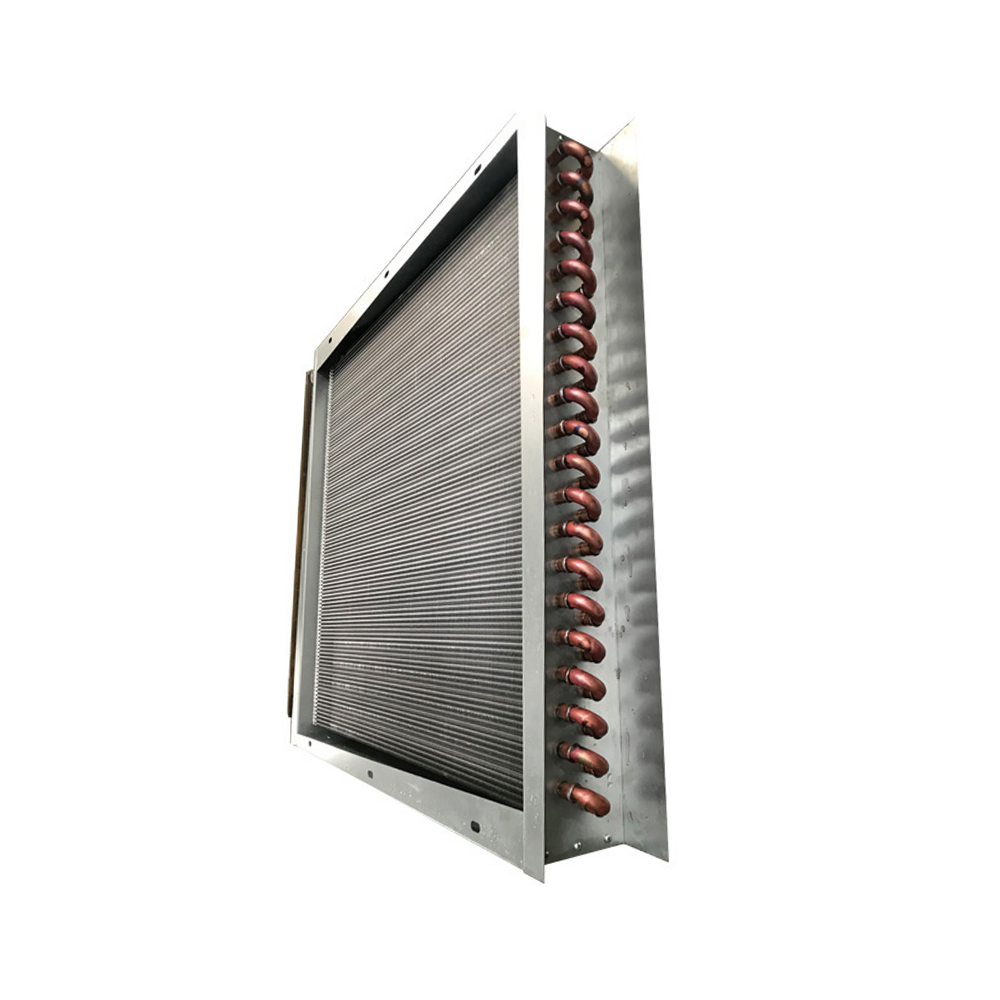

Water To Air Heat Exchanger

Features ● High-precision molds and impact-resistant designs with adjustable fin spacing. ● Mechanical expansion pipes with >5% expansion rate for optimal heat transfer. ● Specializing in national and custom (non-standard) heat exchangers. ● Fast delivery and adaptable to various require...

Send request

   

Description

Technical Data

Features

● High-precision molds and impact-resistant designs with adjustable fin spacing.

● Mechanical expansion pipes with >5% expansion rate for optimal heat transfer.

● Specializing in national and custom (non-standard) heat exchangers.

● Fast delivery and adaptable to various requirements.

● Competitive pricing with guaranteed service quality.

Material

Copper Tube	Aluminum Tube	Bare Fin	Copper Fin	Hydrophilic aluminum fin	Anti-corrosion aluminum foil

Bare tube, inner grooved tube	Bare tube, inner grooved tube	For normal use like freezing and refrigeration	For industrial equipment,subway and train air conditioning	For indoor and transport air conditioning evaporators	For medical, chemical and marine climate.

Application

● Air Conditioning

● Heat Pump

● Refrigeration

Tube Diamater	Hole Space(mm)	Row Space(mm)	Fin Space(mm)	Tube Material	Fin Material
ɸ5	19.05	11.6	1.1~2	Cu	Cu, AL
ɸ5	21	18.2	1.25~3	Cu	Cu, AL
ɸ6	13.5	10	1.3~2	AL	AL
ɸ7	25	21.65	1.4~3.0	AL	Cu, AL
ɸ7	21	18.2	1.2~3.0	Cu, AL	Cu, AL
ɸ7	21	12.7	1.3~2	Cu, SS, AL	Cu, AL
ɸ7	20.5	12.7	1.5~2	Cu	Cu, AL
ɸ7	19.05	12.7	1.3~3	Cu	AL
ɸ7	19.05	16.5	1.4~1.8	Cu	Cu, AL
ɸ7	17.6	13.2	1.3~2.5	Cu	Cu, AL
ɸ7.94	25.4	15.88	1.6~4	Cu, AL	Cu, AL
ɸ7.94	25.4	22	1.4~2.5	Cu	Cu, AL
ɸ7.94	25.4	19.05	1.2~3.3	Cu	Cu, AL
ɸ7.94	25	21.65	1.8~2.2	Cu	Cu, AL
ɸ7.94	22	19.05	1.6~2.3	Cu	Cu, AL
ɸ7.94	20.5	17.5	1.3~2	Cu	Cu, AL
ɸ9.52	31.75	27.5	2~7	Cu	Cu, AL
ɸ9.52	30	30	3~5	Cu	Cu, AL
ɸ9.52	25.4	22	1.7~5.0	Cu, SS	Cu, AL
ɸ9.52	25.4	19.05	1.2~2.5	Cu	Cu, AL
ɸ9.52	25.4	12.7	1.3~2	Cu, AL	Cu, AL
ɸ9.52	25.4	15.88	1.3~3	AL	AL
ɸ9.52	25	21.65	1.6~5.5	Cu, SS, AL	Cu, AL
ɸ9.52	25	25	2.5~4.2	Cu	Cu, AL
ɸ9.52	25	12.5	1.3~3	AL	AL
ɸ9.52	19.05	16.5	1.3~4	Cu, AL	Cu, AL
ɸ12	70	20	6~9	Cu	Cu, AL
ɸ12	50	25	1.8~7	Cu, SS	Cu, AL
ɸ12.7	75	25	8~10	Cu	Cu, AL
ɸ12.7	60	30	8~10	Cu	Cu, AL
ɸ12.7	50	50	2.8~6.0	Cu	Cu, AL
ɸ12.7	48	48	4.5~9	Cu	Cu, AL
ɸ12.7	40.5	35	4.5~12	Cu	Cu, AL
ɸ12.7	38.1	33	1.6~4.0	Cu	Cu, AL
ɸ12.7	35	30.3	1.8~3.1	Cu	Cu, AL
ɸ12.7	31.75	27.5	1.6~5	Cu, SS, AL	Cu, AL
ɸ14.5	52	45	4.5~7	Cu	Cu, AL
ɸ15.88	75	25	8~10	Cu	Cu, AL
ɸ15.88	60	30	8~10	Cu	Cu, AL
ɸ15.88	60	52	7~9	Cu	Cu, AL
ɸ15.88	50	50	2.5~12	Cu, SS, Ti, Cu-Ni	Cu, AL
ɸ15.88	38.1	33	1.6~5.0	Cu, SS, AL, Ti, Cu-Ni	Cu, AL
ɸ18	65	65	6~30	Cu, SS, AL, CS	CS, AL
ɸ25	75	65	6~30	Cu, SS, AL, CS	CS, AL
