Features Evaporator coils in air conditioning systems absorb warm air and cool it through a blower and refrigerant process. The fin-type evaporator uses copper tubes (φ7mm to φ15.88mm) with advanced fins, boosting heat exchange efficiency by 1.3-1.4 times over standard models. Fins are made fr...

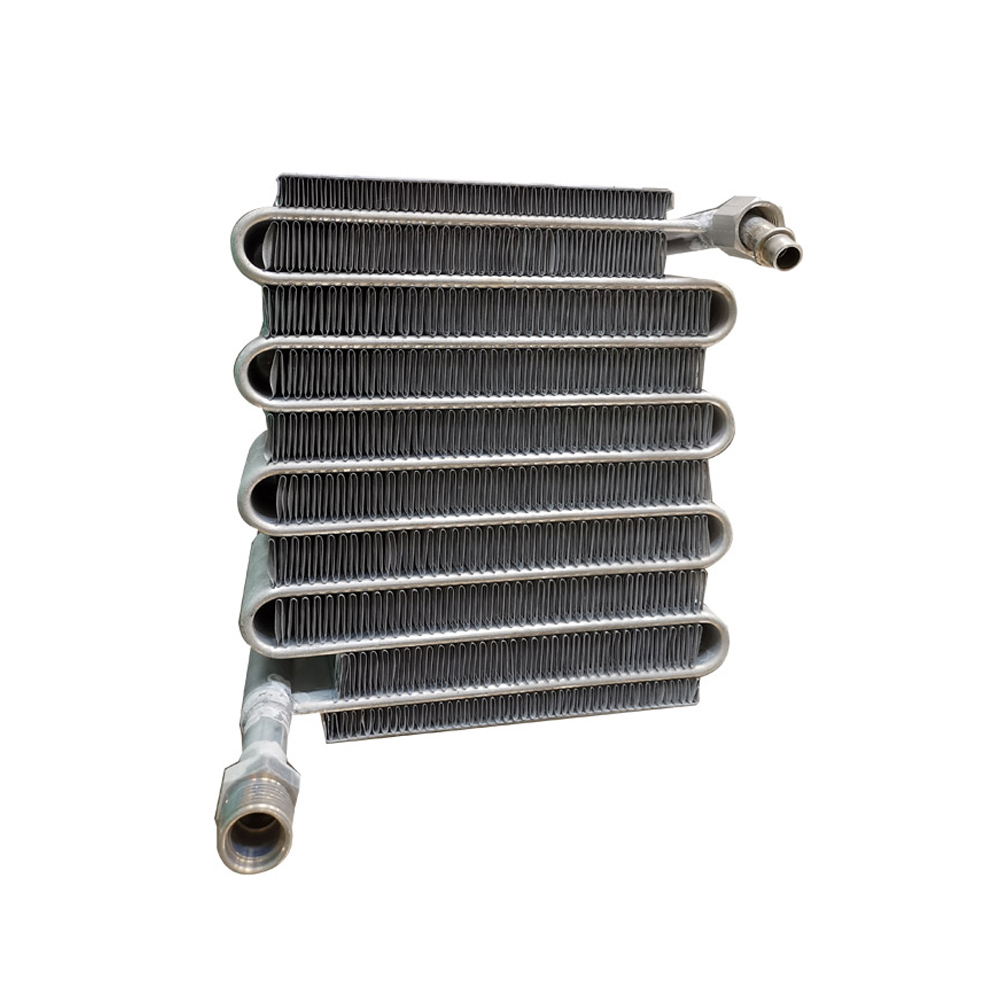

Evaporator coils in air conditioning systems absorb warm air and cool it through a blower and refrigerant process.
The fin-type evaporator uses copper tubes (φ7mm to φ15.88mm) with advanced fins, boosting heat exchange efficiency by 1.3–1.4 times over standard models. Fins are made from hydrophilic aluminum or copper foil, and mechanical expansion ensures optimal performance.
Custom-designed condensers, evaporators, and coils provide efficient heat exchange for air conditioners, heat pumps, and fan coils, with various options to meet different needs.
| Copper Tube | Aluminum Tube | Bare Fin | Copper Fin | Hydrophilic aluminum fin | Anti-corrosion aluminum foil |
 |
 |
 |
 |
 |
 |
| Bare tube, inner grooved tube | Bare tube, inner grooved tube | For normal use like freezing and refrigeration | For industrial equipment,subway and train air conditioning | For indoor and transport air conditioning evaporators | For medical, chemical and marine climate. |
● Air Conditioning
● Heat Pump
● Refrigeration
