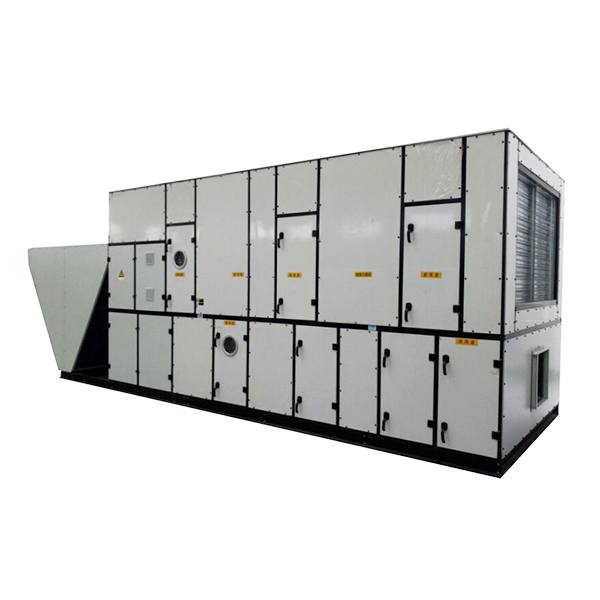

Rooftop Air Conditioner Commercial with heat recovery

Rooftop Air Conditioner Commercial with heat recovery

Features Capacity: 6.2~12.5Tons, 22~43kW, 75000~150000 BTUsEfficiency: 2.7~3.3 cop.Warranty: Compressor- 3 years limited. other parts-1 year limited. Structure Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric ag...

Send request

   

Description

Technical Data

Features

Capacity: 6.2~12.5Tons, 22~43kW, 75000~150000 BTUs
Efficiency: 2.7~3.3 cop.
Warranty: Compressor- 3 years limited. other parts-1 year limited.

Structure

Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agents.

Direct expansion coils with condensate drain tray.

Hermetic compressor

High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers

Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise

Centrifugal fan

Forward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distance

Electric panel

Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.

Easy operation line controller

Cooling/Heating/Auto. Error indication. Timing on/off.

Optional

Economizer with fresh, return air dampers and fresh air hood.

Free cooling function for low ambient temperature.

Low ambient control device for operation of outdoor units at ambient temperatures from less than 20°C down to -10°C

BMS devices.

T3 (Tropical climate).

Condenser coil guard.

Roof curb.

Metal / aluminum filter.

Air pressure switch for indoor fan.

High static condenser fan option with sealed + drain.condensing section.

Optional water heating coil.

Metal or plastic mesh on condenser coil.

Optional supply / return air configurations.

Upgraded evaporator fan motor drives.

G4 filter, plate and bag filter.

Nominal Ton		(Ton)	6.2	7.5	8.5	10	12.5
Model			SLRC-062HWA	SLRC-075HWA	SLRC-085HWA	SLRC-100HWA	SLRC-125HWA
Power Supply		V,Ph,Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz
Cooling 1	Cooling Capacity	Btu/h	75000	89000	103000	120000	150000
	Cooling Capacity	kW	22	26	30	35	43
	Power Input	kW	6.6	7.9	9.3	10.7	13.3
Cooling 2	Cooling Capacity	Btu/h	61500	72980	85000	98400	123000
	Cooling Capacity	kW	18	21	25	29	36
	Power Input	kW	7.6	9.1	10.8	12.3	15.4
Heating	Heating Capacity	Btu/h	89000	103000	120000	137000	154000
	Heating Capacity	kW	26	30	35	40	45
	Power Input	kW	7.5	8.9	10.6	11.9	13.2
Max. Input Consumption		kW	8.6	12	13.6	15	19.7
Max. Current		A	18.3	24.8	26.5	28.8	38.2
Performance	Evaporator Fan Air Flow	CFM	2800	2800	3500	3500	5500
	ESP	Pa	80	80	110	110	130
	EER 1	Btu/h/W	11.4	11.3	11.1	11.2	11.3
	EER 2	Btu/h/W	8.1	8	7.9	8	8
	COP	Btu/h/W	11.8	11.6	11.3	11.5	11.7
Evaporator	Number of Rows		4	4	3	4	4
	Fin Spacing	mm	1.5	1.5	1.5	1.5	1.5
	Fin Spacing	FPI	17	17	17	17	17
	Tube Diameter	mm	7	7	7	7	7
	Tube Diameter	inch	9/32	9/32	9/32	9/32	9/32
Evaporator Fan	Type		FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal
	Quantity		1	1	1	1	1
	Drive Type		Direct	Direct	Belt	Belt	Belt
	Motors Quantity		1	1	1	1	1
	Motor Model		750-4	750-4	Y90L-4-1.5KW	Y90L-4-1.5KW	Y100L1-4-2.2KW
Compressor	Type		Scroll	Scroll	Scroll	Scroll	Scroll
	Quantity		1	1	2	2	2
	Model		SBP235H38A	C-SCP315H38A	E604DH-59D2G×2	E654DH-65D2G×2	C-SBP185H38A/C-SCP360H38A
	Brand		Panasonic	Panasonic	Hitachi	Hitachi	Panasonic
	Capacity	Btu/h	67898	88678	52784×2	58345×2	51862+107443
	Refrigerant Oil Charge	ml	1650	2400	1300×2	1300×2	1600+3200
Condenser	Number of Rows		2.5	3	2.5	3	3
	Fin Spacing	mm	1.5	1.5	1.5	1.5	1.5
	Fin Spacing	FPI	17	17	17	17	17
		mm	7	7	7	7	7
	Tube Diameter	Inch	9/32	9/32	9/32	9/32	9/32
Condenser Fan	Type		Propeller	Propeller	Propeller	Propeller	Propeller
	Quantity		1	1	1	1	1
	Drive Type		Direct	Direct	Direct	Direct	Direct
	Motors Quantity		1	1	1	1	1
	Motor Model		YT370-6	YT550-6	YT750-6	YT900-6	YT1500-6
Refrigerant	Type		R410A	R410A	R410A	R410A	R410A
	Refrigerant Volume	kg	4.3	4.8	2.5+2.5	2.6+2.6	3.6+3.6
	Refrigerant Control		Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve
Sound pressure level		dB(A)	71.5	71.5	71.2	71.5	71.8
Ambient temperature	Cooling		16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C
Ambient temperature	Heating		-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C
Net Weight		kg	229	244	340	343	451
Gross Weight		kg	234	249	350	354	471
Net Dimension	WxHxD	mm	1475x840x1130	1475x840x1130	1483x1138x1231	1483x1138x1231	1965x1230x1130
Packing	WxHxD	mm	1497x867x1152	1497x867x1152	1492x1248x1146	1492x1248x1146	1990x1260x1140
Shipping	Qty’Per 20’/40’/40’HQ		12/24/48	12/24/48	8/16/32	8/16/32	6/12/24

Notes:

1.Cooling capacity test condition (1): Outdoor ambient temperature: 35℃, indoor temperature 26.7℃DB/19.4℃WB;

Cooling capacity test condition (2): Outdoor ambient temperature: 46℃, indoor temperature: 26.7℃DB, 19.4℃WB;

Heating capacity test condition : Outdoor ambient temperature: 7℃DB/6℃ WB, indoor temperature 20℃ DB/ 15℃WB;

2.Units are suitable for operation to ± 20% of nominal CFM;

3.Sound values are measured in a semi-anechoic room, at a position 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.

4.Specifications are subject to change without prior notice for product improvement.

5.* Nominal ton only for reference.

6.Cooling or heating capacity as per specifications.
