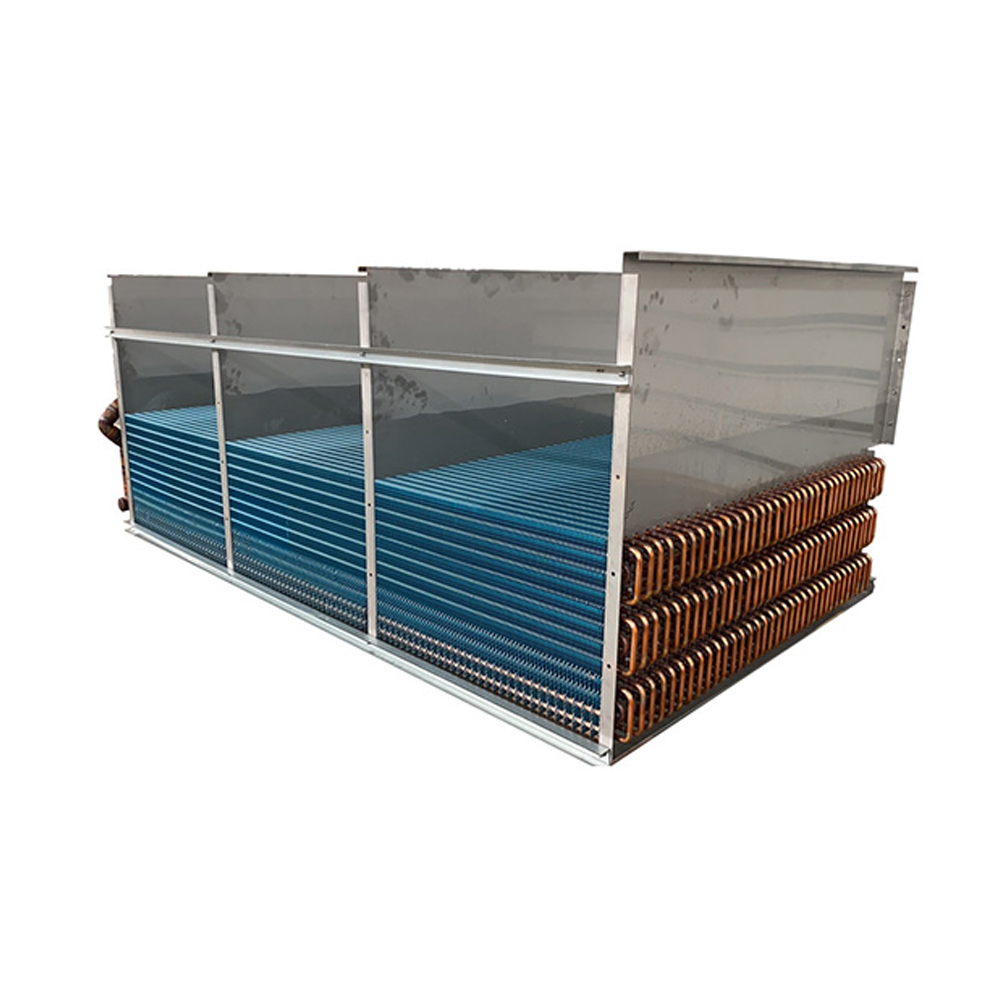

Dry Cooling Coil

Features Chilled Water Coils We provide pure water or glycol solution coils for various chilled water systems, including constant volume, variable volume, and VPF systems. Whether replicating an existing coil, redesigning an outdated one, or creating a custom design, we can meet your needs. Ho...

Send request

   

Description

Technical Data

Features

Chilled Water Coils
We provide pure water or glycol solution coils for various chilled water systems, including constant volume, variable volume, and VPF systems. Whether replicating an existing coil, redesigning an outdated one, or creating a custom design, we can meet your needs.

Hot Water Coils
Our hot water coils are ideal for booster heat, reheat, waste heat recovery, pre-heating, and fluid process heating. We can design new coils or replicate existing ones, tailored to any size, capacity, shape, or circuit type.

Material

Copper Tube	Aluminum Tube	Bare Fin	Copper Fin	Hydrophilic aluminum fin	Anti-corrosion aluminum foil

Bare tube, inner grooved tube	Bare tube, inner grooved tube	For normal use like freezing and refrigeration	For industrial equipment,subway and train air conditioning	For indoor and transport air conditioning evaporators	For medical, chemical and marine climate.

Fin Pattern

Application

● Heat Booster

● Reheat

● Waste Heat Reclamation

● Water Chiller System

Tube Diamater	Hole Space(mm)	Row Space(mm)	Fin Space(mm)	Tube Material	Fin Material
ɸ5	19.05	11.6	1.1~2	Cu	Cu, AL
ɸ5	21	18.2	1.25~3	Cu	Cu, AL
ɸ6	13.5	10	1.3~2	AL	AL
ɸ7	25	21.65	1.4~3.0	AL	Cu, AL
ɸ7	21	18.2	1.2~3.0	Cu, AL	Cu, AL
ɸ7	21	12.7	1.3~2	Cu, SS, AL	Cu, AL
ɸ7	20.5	12.7	1.5~2	Cu	Cu, AL
ɸ7	19.05	12.7	1.3~3	Cu	AL
ɸ7	19.05	16.5	1.4~1.8	Cu	Cu, AL
ɸ7	17.6	13.2	1.3~2.5	Cu	Cu, AL
ɸ7.94	25.4	15.88	1.6~4	Cu, AL	Cu, AL
ɸ7.94	25.4	22	1.4~2.5	Cu	Cu, AL
ɸ7.94	25.4	19.05	1.2~3.3	Cu	Cu, AL
ɸ7.94	25	21.65	1.8~2.2	Cu	Cu, AL
ɸ7.94	22	19.05	1.6~2.3	Cu	Cu, AL
ɸ7.94	20.5	17.5	1.3~2	Cu	Cu, AL
ɸ9.52	31.75	27.5	2~7	Cu	Cu, AL
ɸ9.52	30	30	3~5	Cu	Cu, AL
ɸ9.52	25.4	22	1.7~5.0	Cu, SS	Cu, AL
ɸ9.52	25.4	19.05	1.2~2.5	Cu	Cu, AL
ɸ9.52	25.4	12.7	1.3~2	Cu, AL	Cu, AL
ɸ9.52	25.4	15.88	1.3~3	AL	AL
ɸ9.52	25	21.65	1.6~5.5	Cu, SS, AL	Cu, AL
ɸ9.52	25	25	2.5~4.2	Cu	Cu, AL
ɸ9.52	25	12.5	1.3~3	AL	AL
ɸ9.52	19.05	16.5	1.3~4	Cu, AL	Cu, AL
ɸ12	70	20	6~9	Cu	Cu, AL
ɸ12	50	25	1.8~7	Cu, SS	Cu, AL
ɸ12.7	75	25	8~10	Cu	Cu, AL
ɸ12.7	60	30	8~10	Cu	Cu, AL
ɸ12.7	50	50	2.8~6.0	Cu	Cu, AL
ɸ12.7	48	48	4.5~9	Cu	Cu, AL
ɸ12.7	40.5	35	4.5~12	Cu	Cu, AL
ɸ12.7	38.1	33	1.6~4.0	Cu	Cu, AL
ɸ12.7	35	30.3	1.8~3.1	Cu	Cu, AL
ɸ12.7	31.75	27.5	1.6~5	Cu, SS, AL	Cu, AL
ɸ14.5	52	45	4.5~7	Cu	Cu, AL
ɸ15.88	75	25	8~10	Cu	Cu, AL
ɸ15.88	60	30	8~10	Cu	Cu, AL
ɸ15.88	60	52	7~9	Cu	Cu, AL
ɸ15.88	50	50	2.5~12	Cu, SS, Ti, Cu-Ni	Cu, AL
ɸ15.88	38.1	33	1.6~5.0	Cu, SS, AL, Ti, Cu-Ni	Cu, AL
ɸ18	65	65	6~30	Cu, SS, AL, CS	CS, AL
ɸ25	75	65	6~30	Cu, SS, AL, CS	CS, AL
