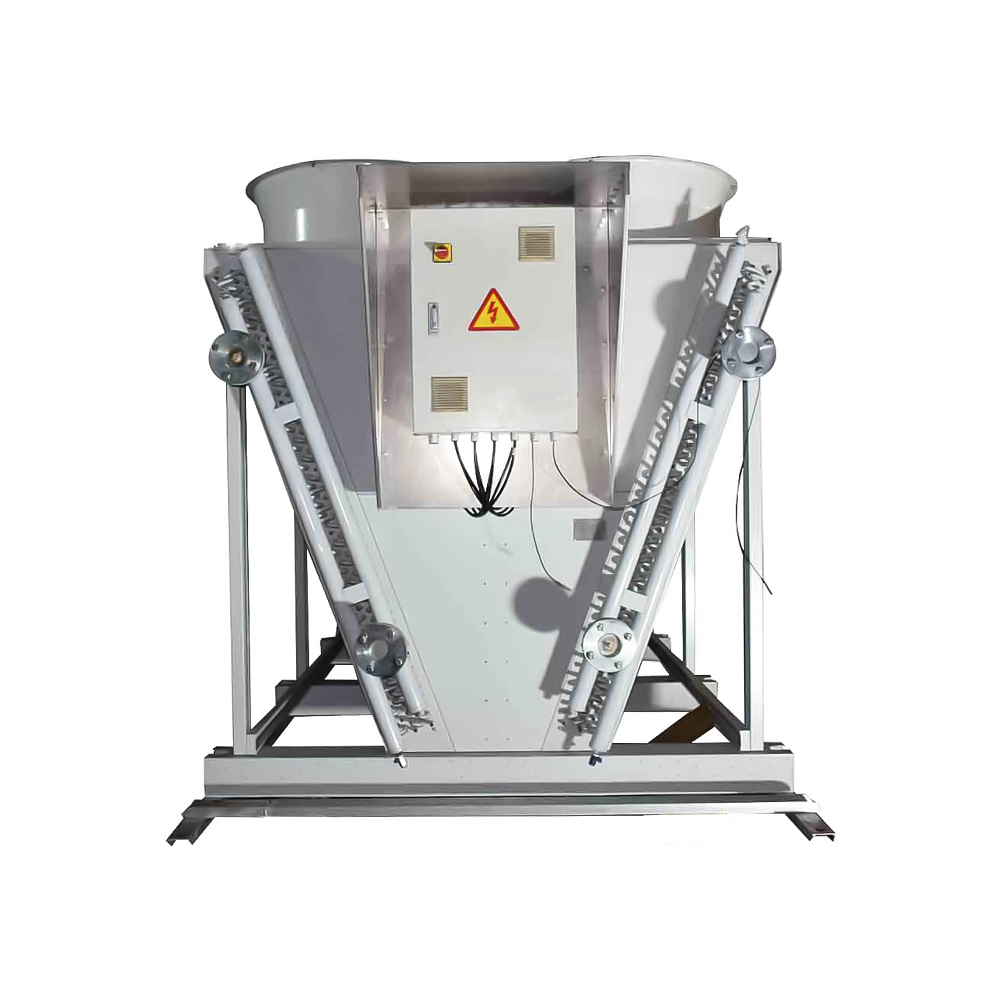

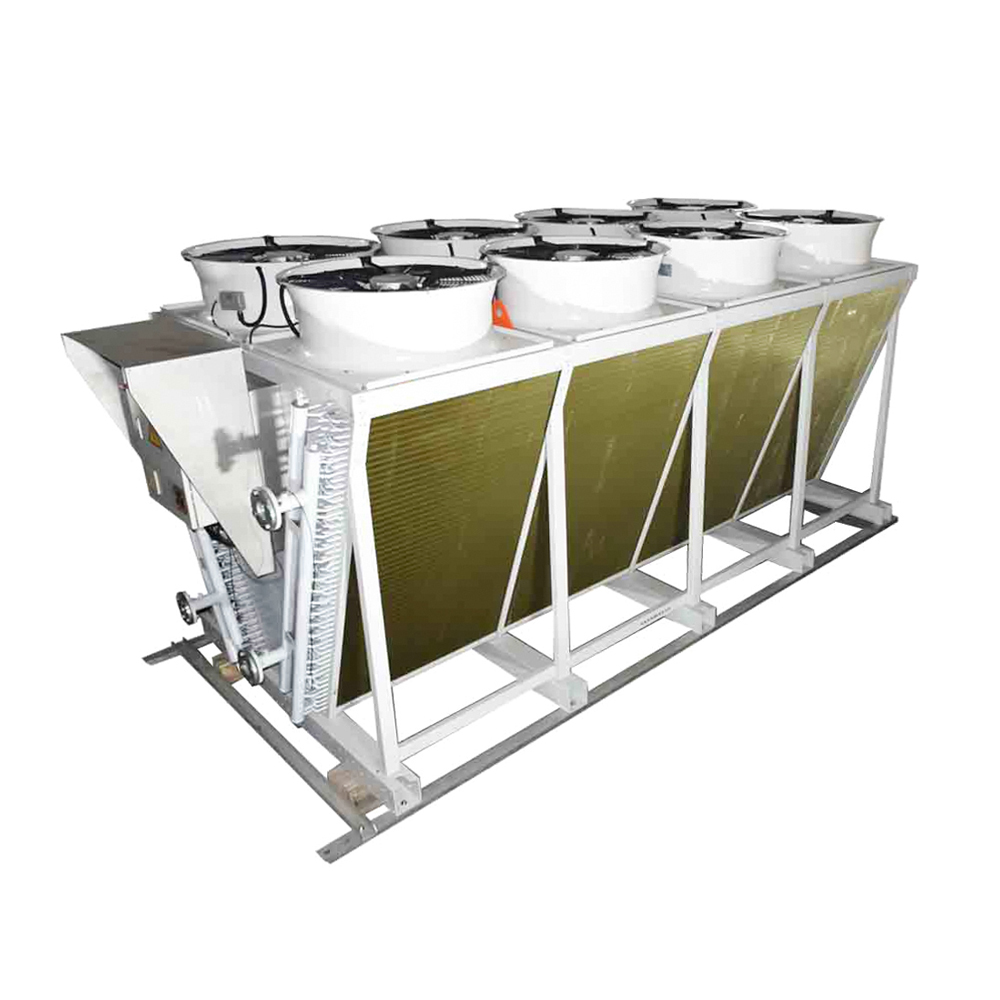

Dry Air Coolers

Features Air discharge direction Performance ranges Cooling capacity: from 148 to 921 kw Air volume: from 76459 to 351663 m3/h Sound pressure level: from 64 to 73 dB A(10m) Free cooler/dry coolers:customized on demand High efficiency heat exchanger Designs optimize heat transfer and mi...

Send request

   

Description

Technical Data

Features

Air discharge direction
Performance ranges	Cooling capacity: from 148 to 921 kw Air volume: from 76459 to 351663 m3/h Sound pressure level: from 64 to 73 dB A(10m) Free cooler/dry coolers:customized on demand
High efficiency heat exchanger	Designs optimize heat transfer and minimize fan energy use. Low pressure drop (max 100 kPa at water conditions). Proven thermodynamic and aerodynamic software, tested in Germany.
Fan	Low-energy fans with optimized nozzles for airflow. Reliable, durable fans from a top manufacturer. Motor: IP 54, F insulation. Voltage: 400V/3N/50Hz. Air separator for each fan.
Testing	Heat exchangers are supplied clean and tested at a pressure of 30 bars
Options	Refrigerants: water, oil, glycol. Multiple and sub-cooling circuits. Stainless steel or aluminum casing. Coated aluminum or copper fins. Explosion-proof motor. Customizable fin spacing.

Application

Industries: process engineering, power plants, chemical, HVAC, smelting, and more. Ideal for outdoor equipment requiring heat dissipation.

Free cooler/dry cooler SHSL-D2 series parameter(fin space 2.1mm)

Type				SHSL-D2-148-4×630	SHSL-D2-166-4×630	SHSL-D2-175-4×630	SHSL-D2-228-6×630	SHSL-D2-250-6×630	SHSL-D2-276-6×630	SHSL-D2-310-8×630	SHSL-D2-343-8×630	SHSL-D2-364-8×630	SHSL-D2-392-10×630
Capacity	Water	KW		147.99	165.85	175.21	227.85	250.42	276.53	309.85	342.73	364.07	391.99
Capacity	20% Et. Glycol	KW		142.42	161.57	170.91	219.09	244.69	270.22	301.18	333.55	354.64	383.3
Air flow		M3/h		76459	74341	72134	114686	111511	108188	152911	148675	144255	191136
Fan		No. X φ		2x2x630	2x2x630	2x2x630	2x3x630	2x3x630	2x3x630	2x4x630	2x4x630	2x4x630	2x5x630
Fan motor 400/3N/50HZ		A		20.4	20.4	20.4	30.6	30.6	30.6	40.8	40.8	40.8	51.00
Sound pressure level		dB(A)10m		64	64	64	66	66	66	67	67	67	68
Dimension		L	mm	2186	2186	2186	3250	3250	3250	4250	4250	4250	5250
		H	mm	1874	1874	1874	1874	1874	1874	1874	1874	1874	1874
		D	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
		D1	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
		L1	mm	963	963	963	963	963	963	963	963	963	963
		L2	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
		L3	mm	1963	1963	1963	2963	2963	2963	3963	3963	3963	4963
Connections inlet φ			mm	2XDN50	2XDN65	2XDN65	2XDN65	2XDN80	2XDN80	2XDN80	2XDN80	2XDN100	2XDN100
Connections onlet φ			mm	2XDN50	2XDN65	2XDN65	2XDN65	2XDN80	2XDN80	2XDN80	2XDN80	2XDN100	2XDN100
Product weight(empty)			kg	769	811	853	1134	1197	1261	1498	1589	1673	1864

Type				SHSL-D2-426-10×630	SHSL-D2-445-12×630	SHSL-D2-517-12×630	SHSL-D2-525-14×630	SHSL-D2-601-14×630	SHSL-D2-596-16×630	SHSL-D2-692-16×630	SHSL-D2-676-18×630	SHSL-D2-783-18×630	SHSL-D2-921-20×630
Capacity	Water	KW		426.15	444.78	516.67	524.70	601.41	595.59	692.11	676.02	783.03	921.23
Capacity	20% Et. Glycol	KW		413.85	427.83	504.38	507.90	586.16	572.94	676.71	653.42	767.64	905.78
Air flow		M3/h		182123	229377	218543	267604	254816	301325	290850	338987	327612	351663
Fan		No. X φ		2X5X630	2X6X630	2X6X630	2X7X630	2X7X630	2X8X630	2X8X630	2X9X630	2X9X630	2X10X630
Fan motor 400/3N/50HZ		A		51.00	61.20	61.20	71.40	71.40	81.60	81.60	91.80	91.80	102.00
Fan motor 400/3N/50HZ		kW		27.50	33.00	33.00	38.50	38.50	44.00	44.00	49.50	49.50	55.00
Sound pressure level		dB(A)10m		68	69	69	70	70	71	71	72	72	73
Dimension		L	mm	5250	6250	6250	7250	7250	8250	8250	9250	9250	10250
		H	mm	1874	1874	1874	1874	1874	1874	1874	1874	1874	1874
		D	mm	2100	2100	2100	2100	2100	2100	2100	2100	2100	2100
		D1	mm	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000
		L1	mm	963	963	963	963	963	963	963	963	963	963
		L2	mm	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
		L3	mm	4963	5963	5963	6963	6963	7963	7963	8963	8963	9963
Connections inlet φ			mm	2XDN100	2XDN100	2XDN100	2XDN100	2XDN125	2XDN125	2XDN125	2XDN125	2XDN125	4XDN1100
Connections onlet φ			mm	2XDN100	2XDN100	2XDN100	2XDN100	2XDN125	2XDN125	2XDN125	2XDN125	2XDN125	4XDN1100
Product weight(empty)			kg	2193	2224	2617	2586	3259	3244	3728	3643	4226	4283
