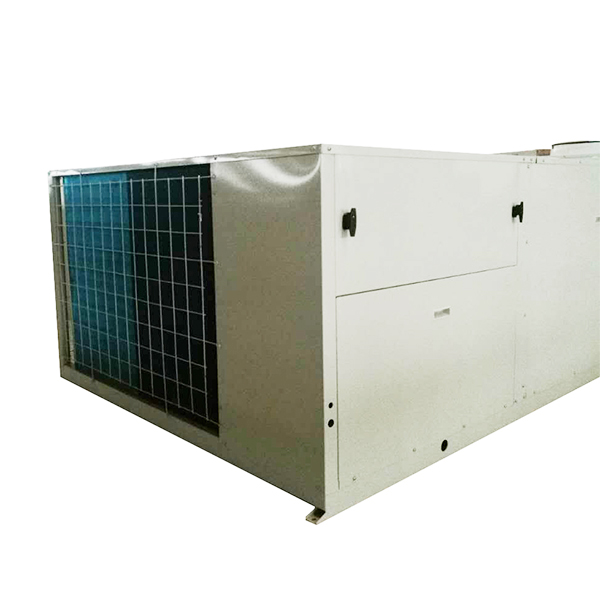

Air Cooled Package Unit(15~30Tons)

Features Capacity: 15~30Tons, 53~105kW, 18000~360000 BTUs Efficiency: 2.7~3.3 cop. Warranty: Compressor- 3 years limited. other parts-1 year limited. Structure Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agen...

Send request

   

Description

Technical Data

Features

Capacity: 15~30Tons, 53~105kW, 18000~360000 BTUs
Efficiency: 2.7~3.3 cop.
Warranty: Compressor- 3 years limited. other parts-1 year limited.

Structure

Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance toatmospheric agents.

Direct expansion coils with condensate drain tray.

Hermetic compressor

High efficiency scroll compressor for the whole range, with built-in thermal overload cut-out and crankcase heater,mounted on rubber vibration dampers

Ripple type acoustic insulation for compressor section, and thermal insulation for coil and fan section, low noise

Centrifugal fan

Forward curve centrifugal fans for air treatment section and axial fans for condensation section. Front, side and underside air discharge of the treatment unit. High external pressure, long air supply distance

Electric panel

Electric panel consists of breakers and contactors for compressors and fan motors, phase sequence relay and other necessary protection devices for the main components.

Easy operation line controller

Cooling/Heating/Auto. Error indication. Timing on/off.

Optional

Economizer with fresh, return air dampers and fresh air hood.

Free cooling function for low ambient temperature.

Low ambient control device for operation of outdoor units at ambient temperatures from less than 20°C down to -10°C

BMS devices.

T3 (Tropical climate).

Condenser coil guard.

Roof curb.

Metal / aluminum filter.

Air pressure switch for indoor fan.

High static condenser fan option with sealed + drain.condensing section.

Optional water heating coil.

Metal or plastic mesh on condenser coil.

Optional supply / return air configurations.

Upgraded evaporator fan motor drives.

G4 filter, plate and bag filter.

Nominal Ton		(Ton)	15	17.5	20	25	30
Model			SLRC-150HWA	SLRC-175HWA	SLRC-200HWA	SLRC-250HWA	SLRC-300HWA
Power Supply		V,Ph,Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz	380~415V,3Ph,50Hz
Cooling 1	Cooling Capacity	Btu/h	180000	208000	240000	300000	360000
	Cooling Capacity	kW	53	61	70	87	105
	Power Input	kW	16.7	19.1	22.6	28.85	35.29
Cooling 2	Cooling Capacity	Btu/h	155000	175000	200000	252000	315000
	Cooling Capacity	kW	45	51	59	74	92
	Power Input	kW	19.5	22.1	25.2	32	39
Heating	Heating Capacity	Btu/h	191000	218000	260000	330000	380000
	Heating Capacity	kW	56	64	75	97	111.5
	Power Input	kW	17.2	19.5	23.6	30.28	35.19
Max. Input Consumption		kW	25	27	32.5	38.5	42.7
Max. Current		A	46.1	55.4	63.2	74.3	81.7
Performance	Evaporator Fan Air Flow	CFM	5500	7600	7600	11200	11200
	ESP	Pa	130	200	200	320	320
	EER 1	Btu/h/W	10.8	10.9	10.6	10.4	10.2
	EER 2	Btu/h/W	7.9	7.9	7.9	7.9	8.1
	COP	Btu/h/W	11.1	11.2	11	10.9	10.8
Evaporator	Number of Rows		4	3	4	4	4
	Fin Spacing	mm	1.5	1.5	1.5	1.5	1.5
	Fin Spacing	FPI	17	17	17	17	17
	Tube Diameter	mm	7	7	7	8	8
	Tube Diameter	inch	9/32	9/32	9/32	5/16	5/16
Evaporator Fan	Type		FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal	FC Centrifugal
	Quantity		1	1	1	1	1
	Drive Type		Belt	Belt	Belt	Belt	Belt
	Motors Quantity		1	1	1	1	1
	Motor Model		Y100L1-4-2.2KW	Y112M-4-4KW	Y112M-4-4KW	Y132M-4-4-7.5KW	Y132M-4-4-7.5KW
Compressor	Type		Scroll	Scroll	Scroll	Scroll	Scroll
	Quantity		2	2	2	2	2
	Model		C-SBP185H38A/C-SCP400H38A	C-SCP360H38Ax2	C-SCP400H38A×2	C-SCP453H38B*2	C-SCP510H38B*2
	Brand		Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
	Capacity	Btu/h	51862+111914	102018×2	11191×2	126892×2	149752×2
	Refrigerant Oil Charge	ml	1600+3200	2513×2	3253×2	3300×2	3600×2
Condenser	Number of Rows		3	2.5	3	3+3	3
	Fin Spacing	mm	1.6	1.5	1.5	1.5	1.5
	Fin Spacing	FPI	16	17	17	16	16
		mm	8	7	7	7	7
	Tube Diameter	Inch	5月16日	9/32	9/32	9/32	9/32
Condenser Fan	Type		Propeller	Propeller	Propeller	Propeller	Propeller
	Quantity		1	2	2	2	2
	Drive Type		Direct	Direct	Direct	Direct	Direct
	Motors Quantity		1	2	2	2	2
	Motor Model		YT1800-6	YT750-6-2	YT900-6-2	YT1500-6-2	YS1800-6-2
Refrigerant	Type		R410A	R410A	R410A	R410A	R410A
	Refrigerant Volume	kg	4.5+4.5	5.5+5.5	6.7+6.7	7.6+7.6	8.6+8.6
	Refrigerant Control		Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve	Thermostatic Expansion Valve
Sound pressure level		dB(A)	76.9	76	75.3	76.8	77.9
Ambient temperature	Cooling		16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C	16° C-52° C
Ambient temperature	Heating		-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C	-10° C-24° C
Net Weight		kg	492	615	690	940	955
Gross Weight		kg	512	645	720	970	985
Net Dimension	WxHxD	mm	1965x1230x1130	2200x1247x1670	2200x1247x1670	2200x1245x2320	2200x1245x2320
Packing	WxHxD	mm	1990x1260x1140	2240x1284x1695	2240x1284x1695	2240x1275x2330	2240x1275x2330
Shipping	Qty’Per 20’/40’/40’HQ		6/12/24	3/7/14	3/7/14	2/5/10	2/5/10

Notes:

1.Cooling capacity test condition (1): Outdoor ambient temperature: 35℃, indoor temperature 26.7℃DB/19.4℃WB;

Cooling capacity test condition (2): Outdoor ambient temperature: 46℃, indoor temperature: 26.7℃DB, 19.4℃WB;

Heating capacity test condition : Outdoor ambient temperature: 7℃DB/6℃ WB, indoor temperature 20℃ DB/ 15℃WB;

2.Units are suitable for operation to ± 20% of nominal CFM;

3.Sound values are measured in a semi-anechoic room, at a position 1 meter in front of the unit and (1 meter+Height of unit)/2 above the floor.

4.Specifications are subject to change without prior notice for product improvement.

5.* Nominal ton only for reference.

6.Cooling or heating capacity as per specifications.
